How devices, switches and gauges should be wired, according to the Electrical Schematics and the devices on the Tomato. The state of these connections as I found them during disassembly can be found in Devices: As Found. Schematics are fine, but for dummy-friendly reassembly an actual map of connections is better. In these diagrams multiple colours are specified as Stripe/Base (e.g., R/W), unlike other diagrams that (might) use BaseStripe (e.g., WR).

Reconstruction Diagrams

           Engine Bay       Gauges       Switches       Other

Engine Bay

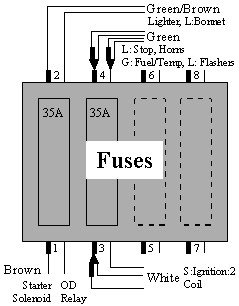

Fuse Box
Voltage Regulator

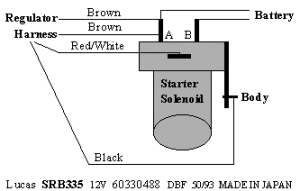

Starter Solenoid

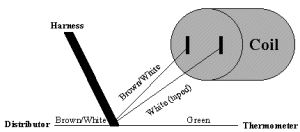

Coil

Gauges
All gauges are by Jaeger. Each gauge has one of a string of lamps (Red) coming off the harness. Each gauge, but Tach and Oil is grounded in series with the others.

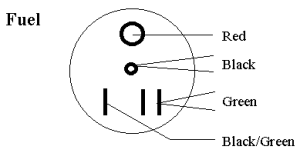

Fuel

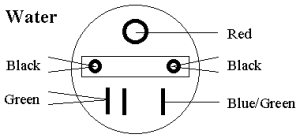

Water

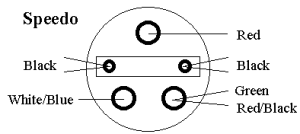

Speedometer

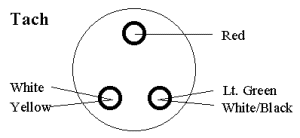

Tachometer

Switches
Note that the Electrical Schematics imply that Up is Off, whereas my inclination and the as-found state of the Tomato is that Up is On. But, then the bezel for the Panel/Map switch will not be exactly correct. Here, they are shown as Up is On because I didn't want to flip my Devices: As Found diagrams. Tell Me whether my ignition switch is original, but everything else appears to be. Part numbers are supplied for toggles since they're most likely to be replaced with newer ones.

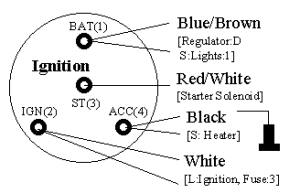

Ignition
High Beam
Lights (31946A 5 62)
Panel/Map (31946A 5 62)
Wipers (31947A 6 60)

Other Devices
  • Wiper Motor
  • Starter
  • Generator
