Valve Rocker Setting

I found the order in which valve rockers are to be adjusted very confusing in both the Rootes Alpine Workshop Manual and a Clymer book I borrowed from somebody. They both use a two-column format without saying whether to read across or down. So, I made a little diagram to clear things up. There are two and a quarter cycles shown.

Inlet/Exhaust            Open/Adjust
4 3 2 1
E I E I I E I E
O             A
      O A
    A     O
  O         A
A             O
      A O
    O     A
  A         O
O             A

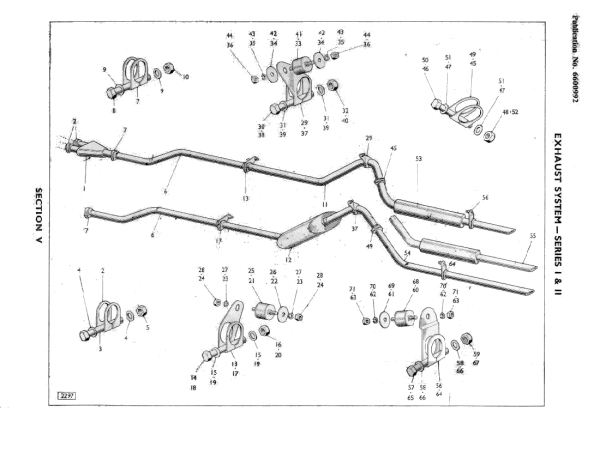

Series I/II Exhaust System -600- 100%

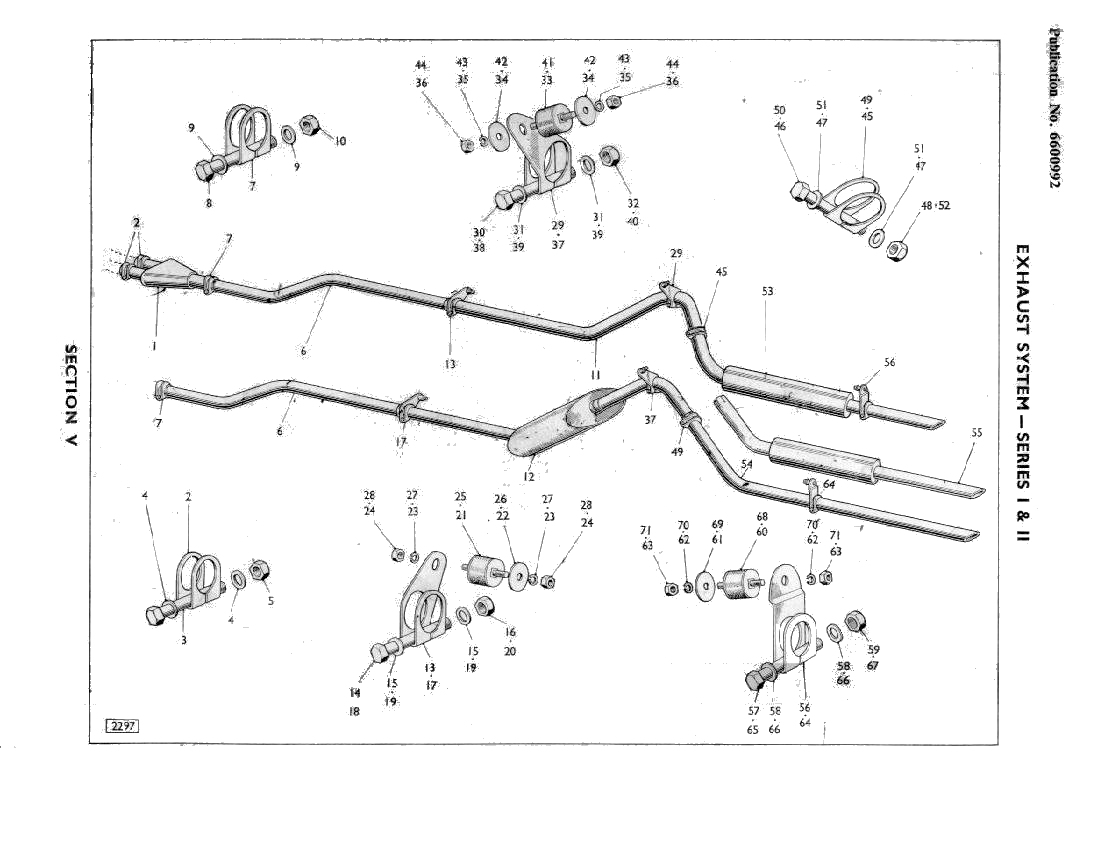

Series I/II Exhaust System
